WV6 Wireless Video Transmission Solutions
A proprietary wireless video transmission solution developed based on WISEJET’s 60GHz wireless video transmission technology (WV6),
this chip/module supports wireless implementation of various display interfaces such as HDMI, V-by-One, and DP.
this chip/module supports wireless implementation of various display interfaces such as HDMI, V-by-One, and DP.
Obstacle interference has been minimized through our proprietary, powerful beamforming technology.
Customization is available to meet specific products or desired specifications.
Customization is available to meet specific products or desired specifications.
Ultra-High-Speed
(10 Gbps +)
(10 Gbps +)
Ultra-Low Latency
(Sub-1ms)
(Sub-1ms)
Extended-Range
(Up to 10M)
(Up to 10M)
Low-Power Architecture
Ultra-Compact
Form Factor
Form Factor
Visually Lossless
(PSNR 50dB+)
(PSNR 50dB+)
Specifications
Frequency Band
| 60GHz Band
|
Package Size
| 12 x 12 x 2.5 mm³ |
Package Type
| FCCSP |
Input Interface
| DP or V-by-One |
Operating Temperature
| -55℃ ~ 125℃ |
Power Supply Voltage
| Core VDD 1.2V /IO VDD : 2.5V
|
Power Consumption
| TX: 4.6-4.8W (Including RF) / RX: 4.8-5.9W (Including RF)
|
Maximum Data Rate
| 4Gbps / 10Gbps |
Additional features
|
|
Supported Interfaces
Video
Communication
Applications
VR Headset Prototype
HTC VIVE
HTC VIVE
Transmitter & Receiver

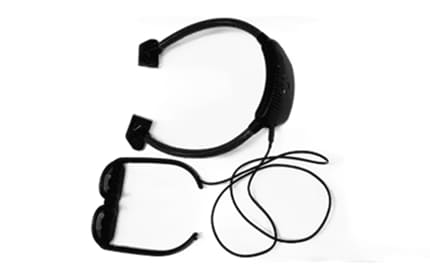

XR Glasses Prototype
- Ultra-Low Latency (Sub-1ms)
- USB Type-C Interface
- 360° Beamforming
- Back-Channel Support

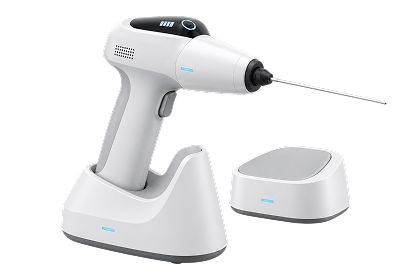

Wireless ENT Endoscope

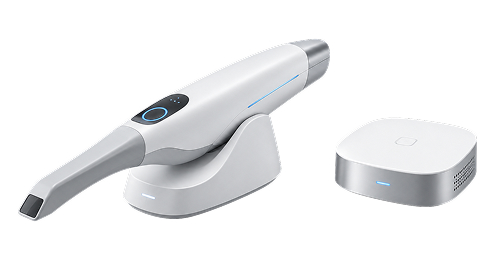

Wireless Dental Scanner
Module Types
V-by-One Module
DP Module
